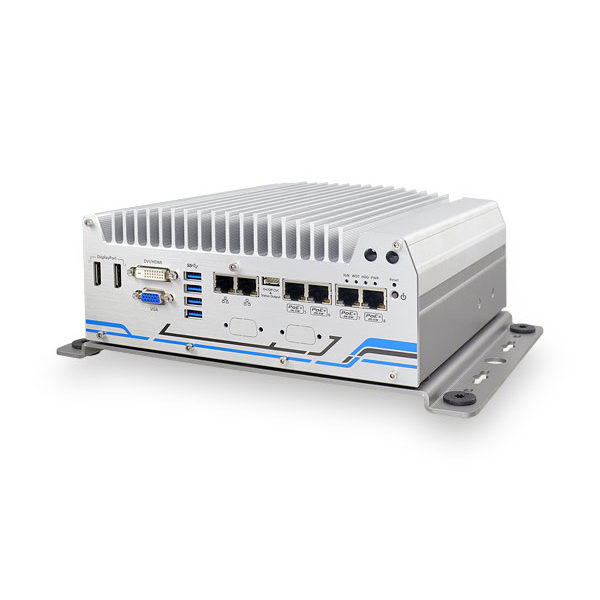

Nuvo-5608VR
The state of the art mobile surveillance computer with all the right features for rugged, dependable deployment in nearly any environment. A well thought out design with room for up to 8x IP cameras and an enormous 24TB of data storage.
Designed from the start for mobile surveillance, this system incorporates specialized technologies including up to 8x PoE+, multiple wireless network protocol capability, and huge data storage capacity. Shock and vibration certifications and extended operating temperature for extreme rugged environments. The main computer’s quiet fanless design guards against intrusion of airborne contaminants. Exceptional main compartment thermal performance is achieved through an innovative thermal transfer system that conducts heat 10x better than traditional fanless designs. The Neousys thermal pad liquefies when heated by the CPU while springs push the CPU closer to the chassis heatsink for optimal heat transfer.
Intel’s® Long Life Cycle 6th-Gen Skylake i7/i5/i3 CPU brings an 11% IPC improvement along with 22% power reduction contributing to a significant efficiency boost. With this long life cycle CPU, product model changes are curbed or eliminated over time to keep recurring project costs to a minimum. The large 24TB data storage capacity is well protected with dedicated HDD heat-spreaders to maintain the required HDD operating temperature in extreme conditions. The extended power input range of 8 to 35 VDC accommodates nearly all mobile power bus configurations and eliminates the need for a separate power adapter in many applications.

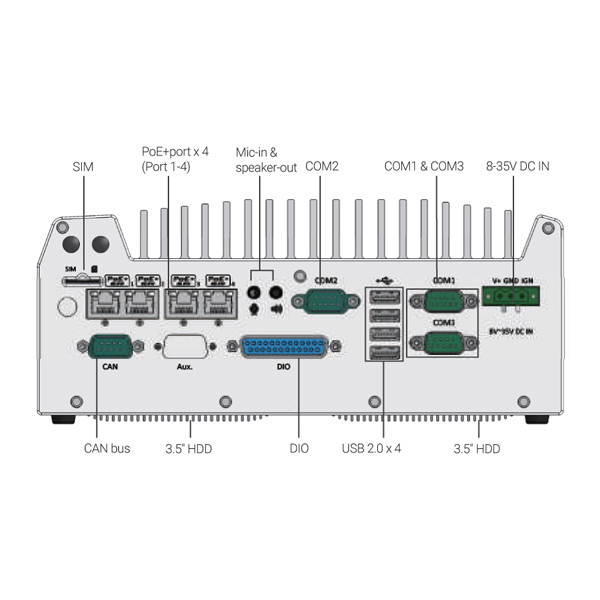

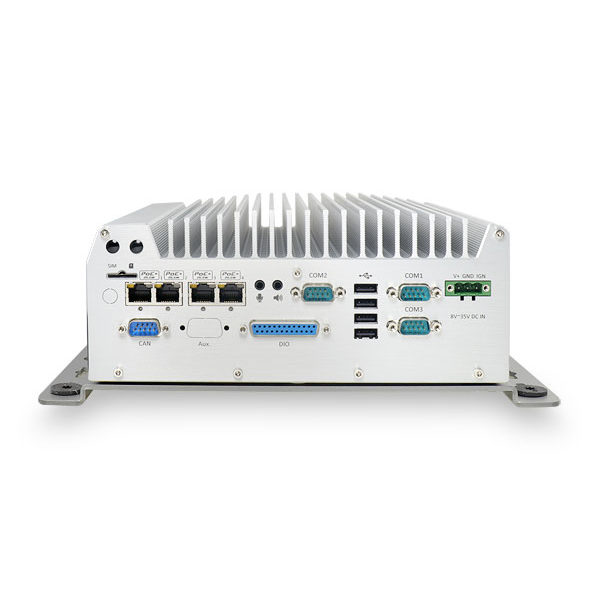

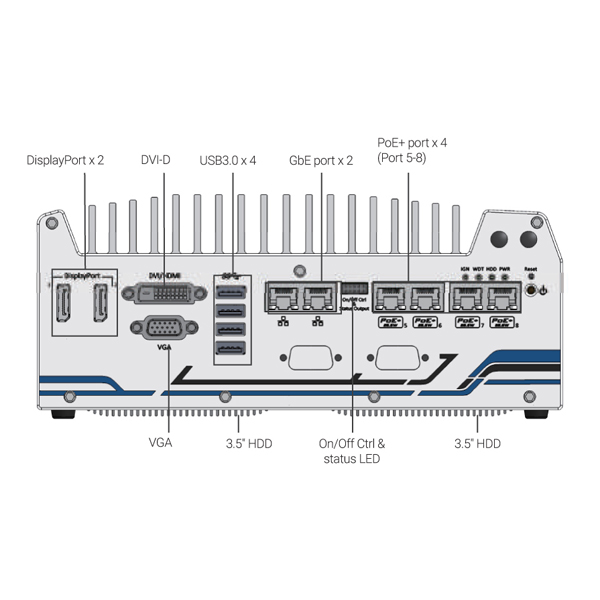

Specialized I/O includes 8x PoE+ ports @25.5W ea., 8x USB and 3x COM ports. 2x internal SATA ports for 2.5″ HDD/SSD installation, supporting RAID 0/1. Bus expansion includes 1x full-size mSATA port (muxed with mini-PCIe), 1x internal mini PCI Express socket with front-accessible SIM socket, and 1x internal mini PCI Express socket with internal SIM socket (muxed with mSATA). Optional 4-CH isolated DI and 4-CH isolated DO provides a versatile

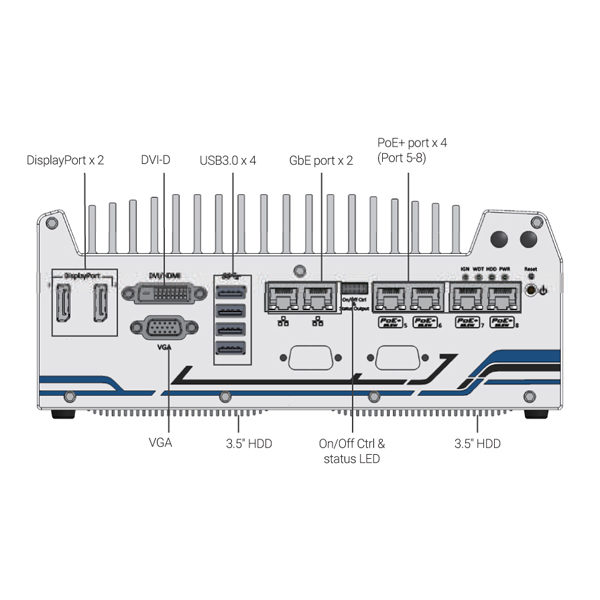

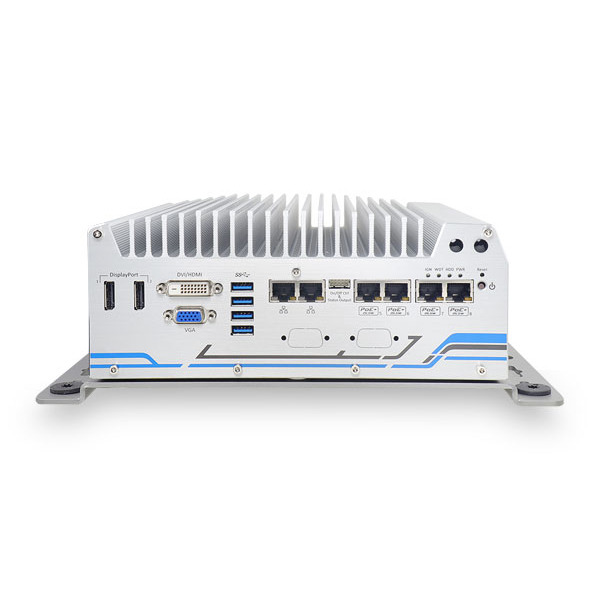

interface for automation tasks. On/Off remote control. VGA, DVI-D, and 2x DisplayPort connectors with4K2K resolution. The Nuvo-5608VR is a rugged long life cycle mobile surveillance computing platform tough enough for environmentally challenging installations.
Column 1 Column 2
Model Nuvo-5608VR-ixQC
System
Processor Supports Intel® 6th-Gen Core™ Skylake i7/i5/i3 LGA1151 CPU
Intel® Core™ i7-6700 (8M Cache, 3.4/ 4.0 GHz, 65W TDP)
Intel® Core™ i5-6500 (6M Cache, 3.2/ 3.6 GHz, 65W TDP)
Intel® Core™ i3-6100 (3M Cache, 3.7 GHz, 51W TDP)
Chipset Intel® Q170 Platform Controller Hub
Graphics Integrated Intel® HD Graphics 530
Memory Up to 32 GB DDR4-2133 SDRAM by two SODIMM sockets
AMT Supports AMT 11.0
TPM Supports TPM 2.0
I/O External
Ethernet 2x Gigabit Ethernet ports by Intel® I219 and I210
PoE+ 8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (120W total power budget*)
CAN 1x CAN 2.0 port
Isolated DIO 4x isolated DI and 4x isolated DO
USB 4x USB 3.0 ports via native xHCI controller
4x USB 2.0 ports
Video 1x stacked VGA + DVI-D connector
2x DisplayPort connectors, supporting 4K2K resolution
Serial 2x software-programmable RS-232/422/485 port (COM1 & COM3)
1x RS-232 port (COM2)
Audio 1x Mic-in and 1x speaker-out
Expansion
Mini-PCIe 1x full-size mini-PCIe socket with panel-accessible SIM socket
1x full-size mini-PCIe socket with internal SIM socket (mux. with mSATA)
2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets
Storage
SATA HDD 2x Internal SATA port for 2.5” HDD/SSD installation, supporting RAID 0/1
MSATA 1x full-size mSATA port (mux with mini-PCIe)
Power
DC Input 1x 3-pin pluggable terminal block for 8~35 VDC power input
Remote Ctrl. & Status Output 1x 10-pin (2x5) wafer connector for remote on/off control and status LED output
Mechanical

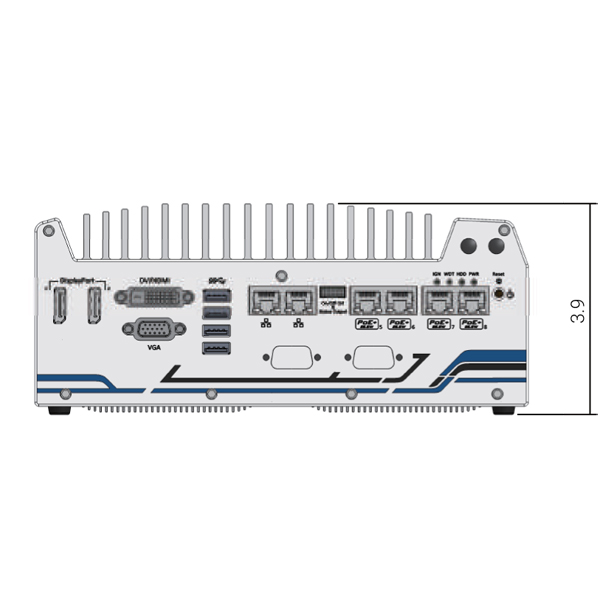

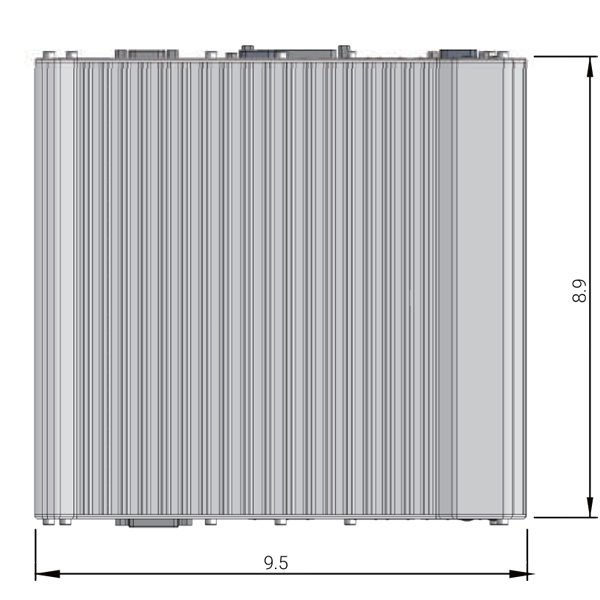

Dimensions 9.5" (W) x 8.9" (D) x 3.9" (H)
Weight 7.7 lbs
Mounting Neousys’ patented damping bracket (standard) or optional DIN-Rail mounting
Environmental
Operating Temperature -25°C ~ 70°C **, -10°C ~ 60°C **/***
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 1 Grms, 5-500 Hz, 3 Axes, (w/ HDD & damping bracket, according to IEC60068-2-64)
Shock Operating, 30 Grms, Half-sine 11 ms Duration (w/ HDD and damping bracket installed,
according to IEC60068-2-27)
Certifications CE/FCC Class A, according to EN 55022 & EN 55024
* The total power budget for Nuvo-5608VR is related to input voltage. 120W total budget is
available with 24 VDC input. When 12 VDC input is applied, the total power budget is
limited to 100W.
** Operating temperature is verified with 100% CPU loading and 100% HDD loading applied
using Passmark® BurnInTest 8.0.
***Depending on the HDD selected, users may encounter performance degradation in
sequential disk write at low/high ambient temperature. No data integrity issue was observed in
the -10°C ~ 60°C operating temperature range.
–
